| Topic: Solenoid 1502148 Stem Resize | TB No.: 10055 | Date: 14/01/2021 | |
| Affected Machines: | Ecoboiler PB5/PB10 | Priority: Low | Created By: Eddie Purtil |
| From Serial No.: | All | Created For: Technicians | |
| From Date: | Pages: 2 | ||
Solenoid 1502148 Stem Resize
| UPDATE |
In order to reduce parts Marco adopted one valve for both Ecoboiler and Ecosmart(LED screen) push button models.
The dispense valve p/n 1502148 inlet stem must be cut to fit the Ecoboiler Push Button range. Please see below image.
Ecosmart PB does not need to be cut.
| NOTES FOR ENGINEERS |

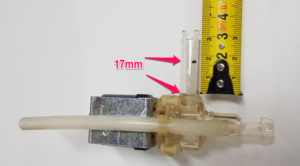

Measure 17mm as below

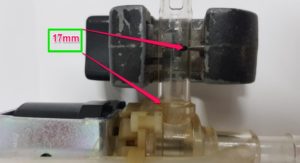

Cut the valve stem using a pipe cutter as shown. Please note a hacksaw shouldn’t
be used as swarf could get into the valve and cause it to jam open.
If you do not have a pipe cutter, and you must use a hacksaw, place a tissue into the valve to prevent any plastic swarf from entering the valve and wash out after cutting!

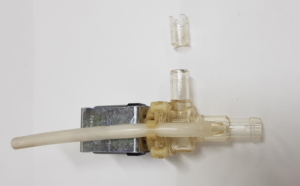

Ready for use
